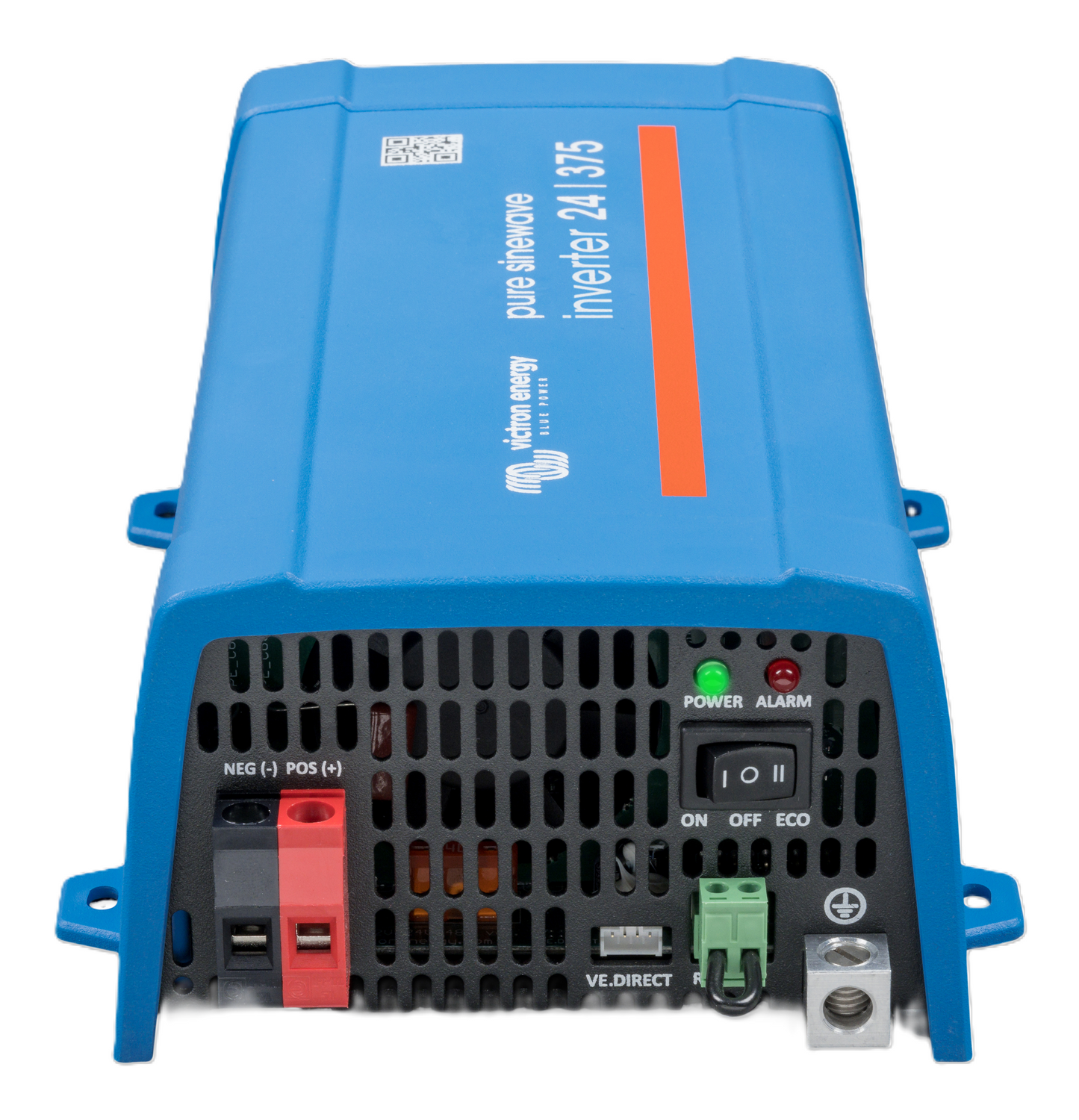

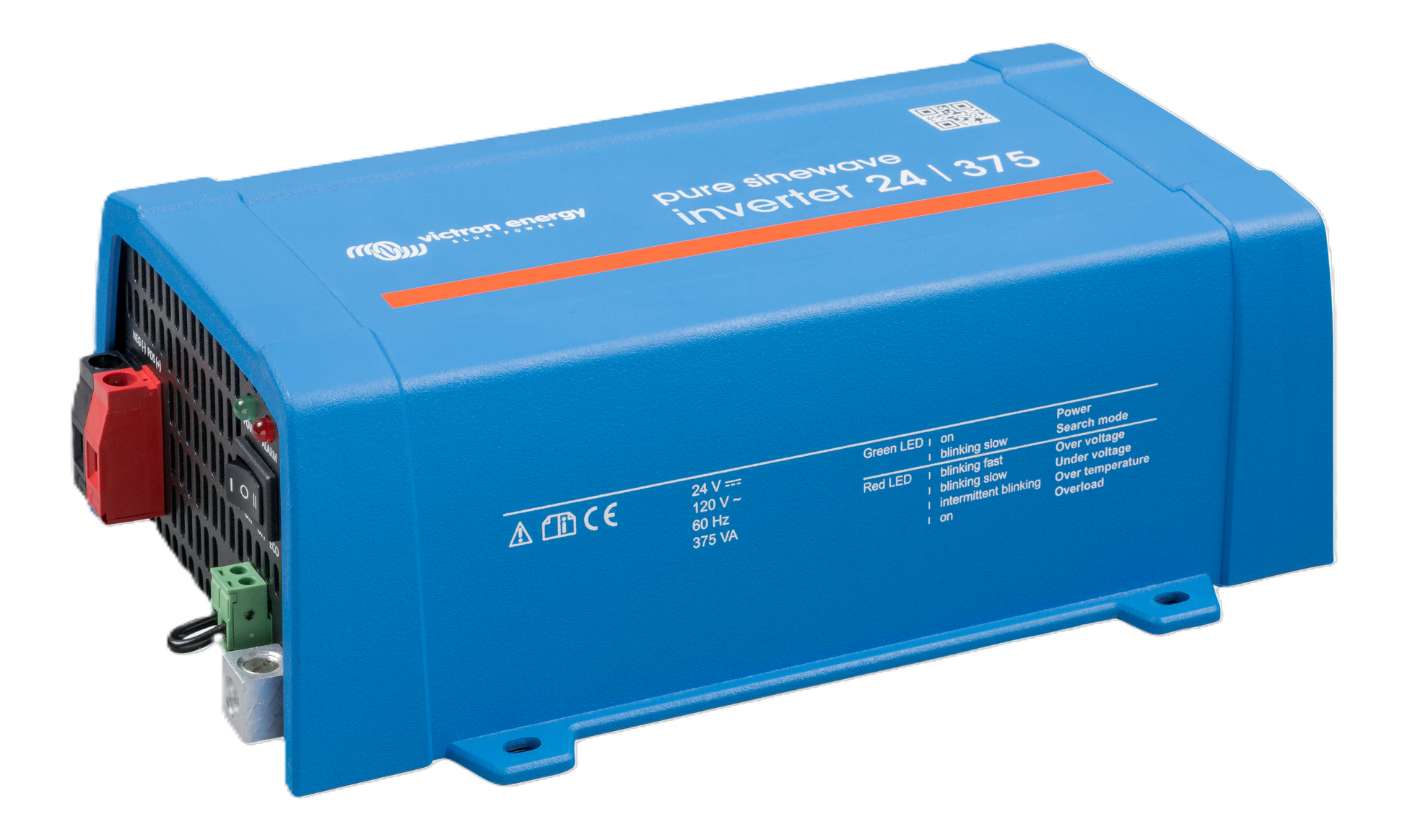

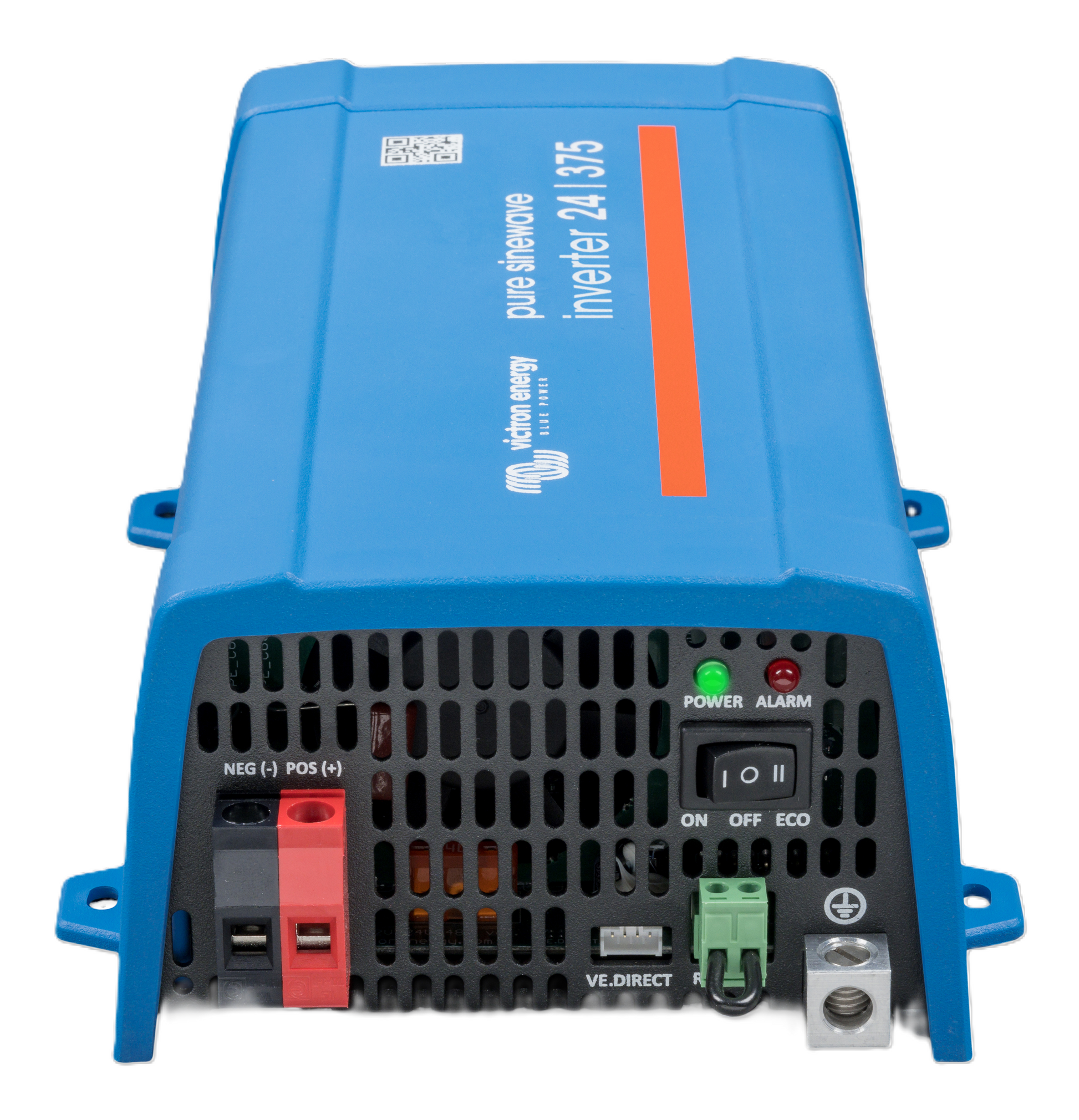

Victron Phoenix Inverter 24/375 230V VE.Direct IEC

Inverters allow you to power domestic equipment - requiring 230V - using 'leisure' or 'automotive' batteries rated at 24V DC.

Pure Sine Wave

24VDC, 375VA

Cont. power at 25°C / 40°C: 300 / 260W

700W Peak Power

230VAC Output

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverters are short circuit proof and protected against overheating, whether due to overload or
high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

Eco Mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset
value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable,
default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the
left-hand contact of the two-pole connectors.

LED diagnosis

Please see the manual for a description.

To transfer the load to another AC source: the automatic transfer switch

For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features
a very short switchover time (less than 20 milliseconds) so that computers and other electronic
equipment will continue to operate without disruption.
