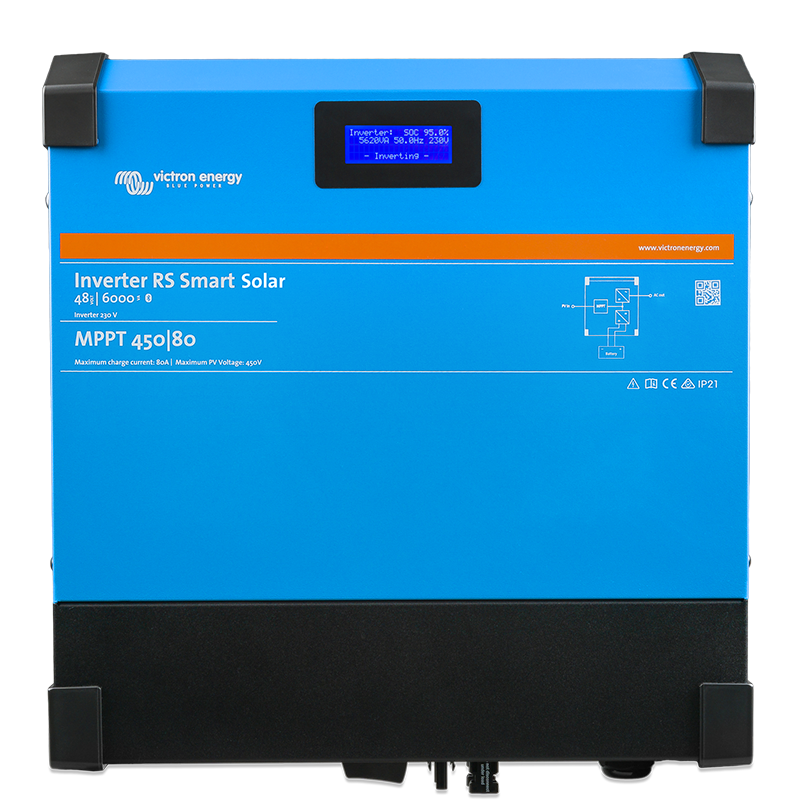

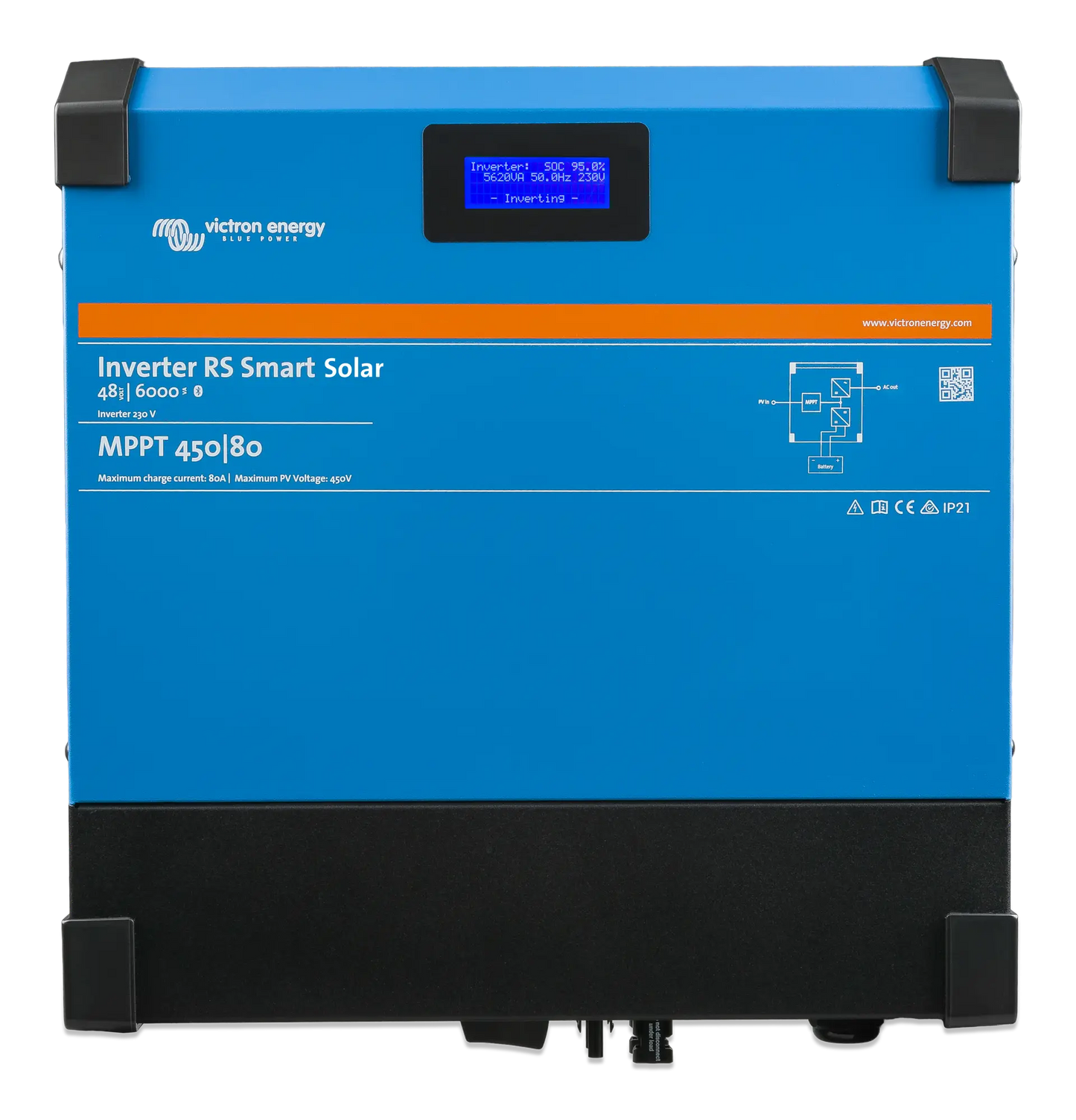

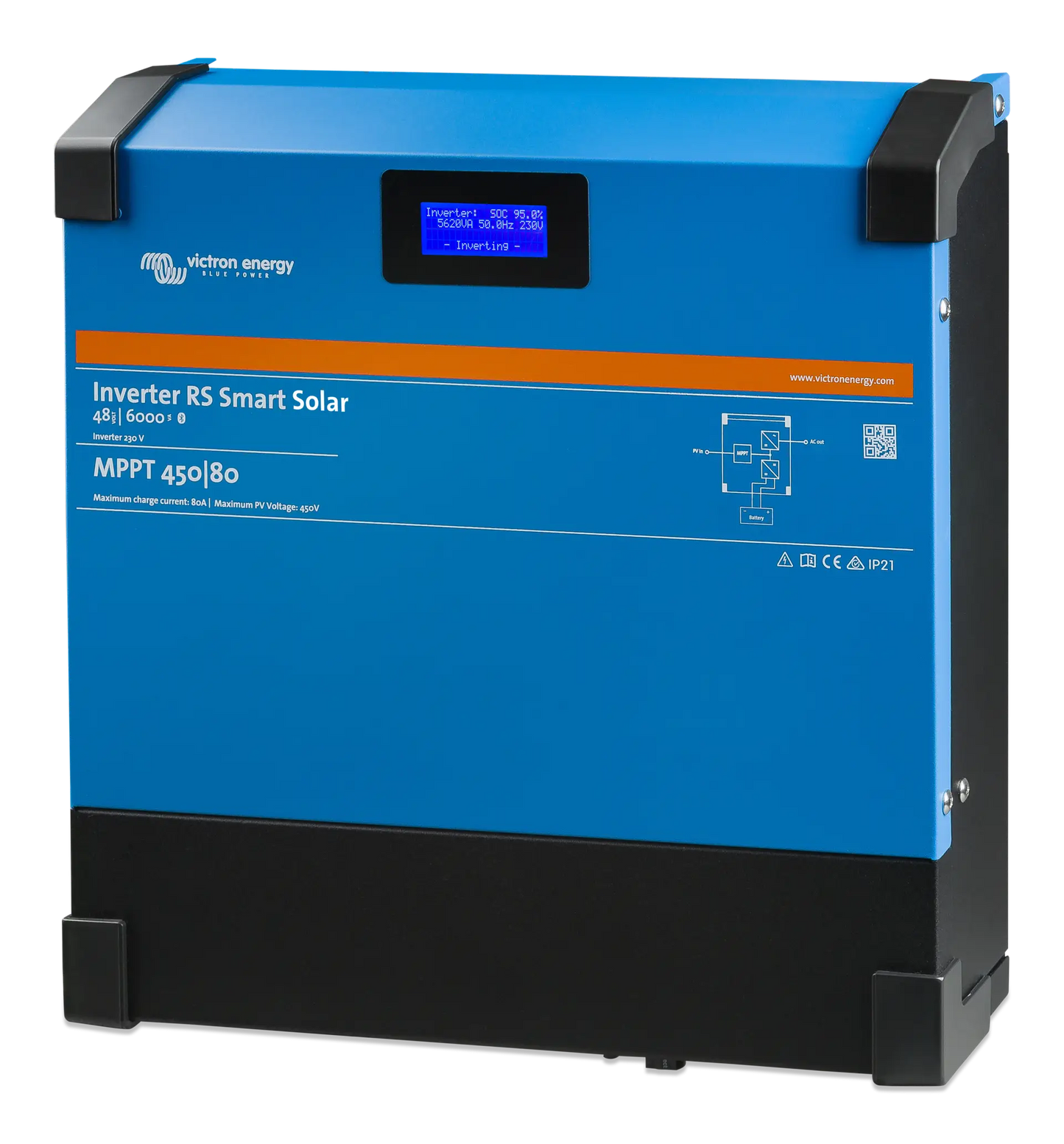

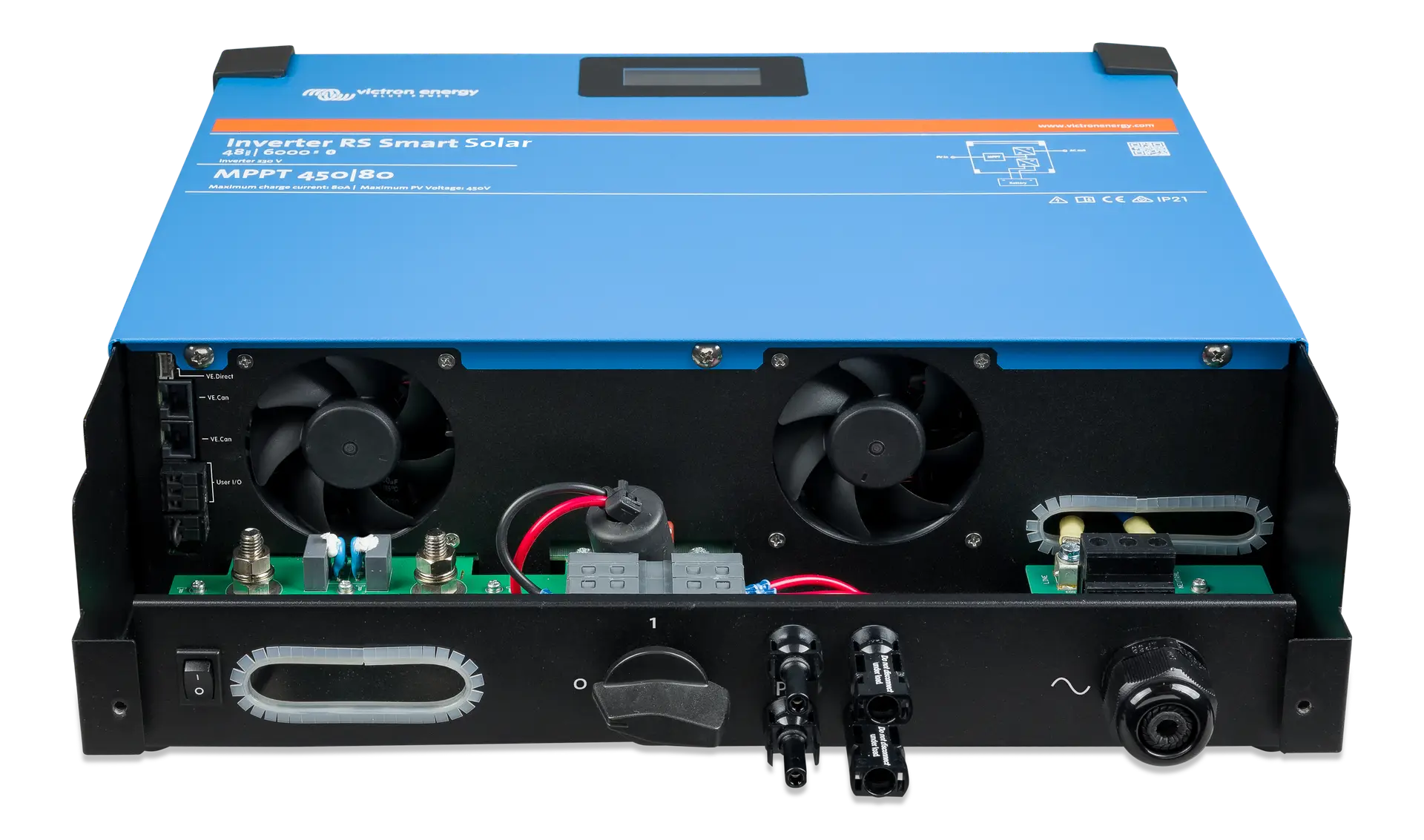

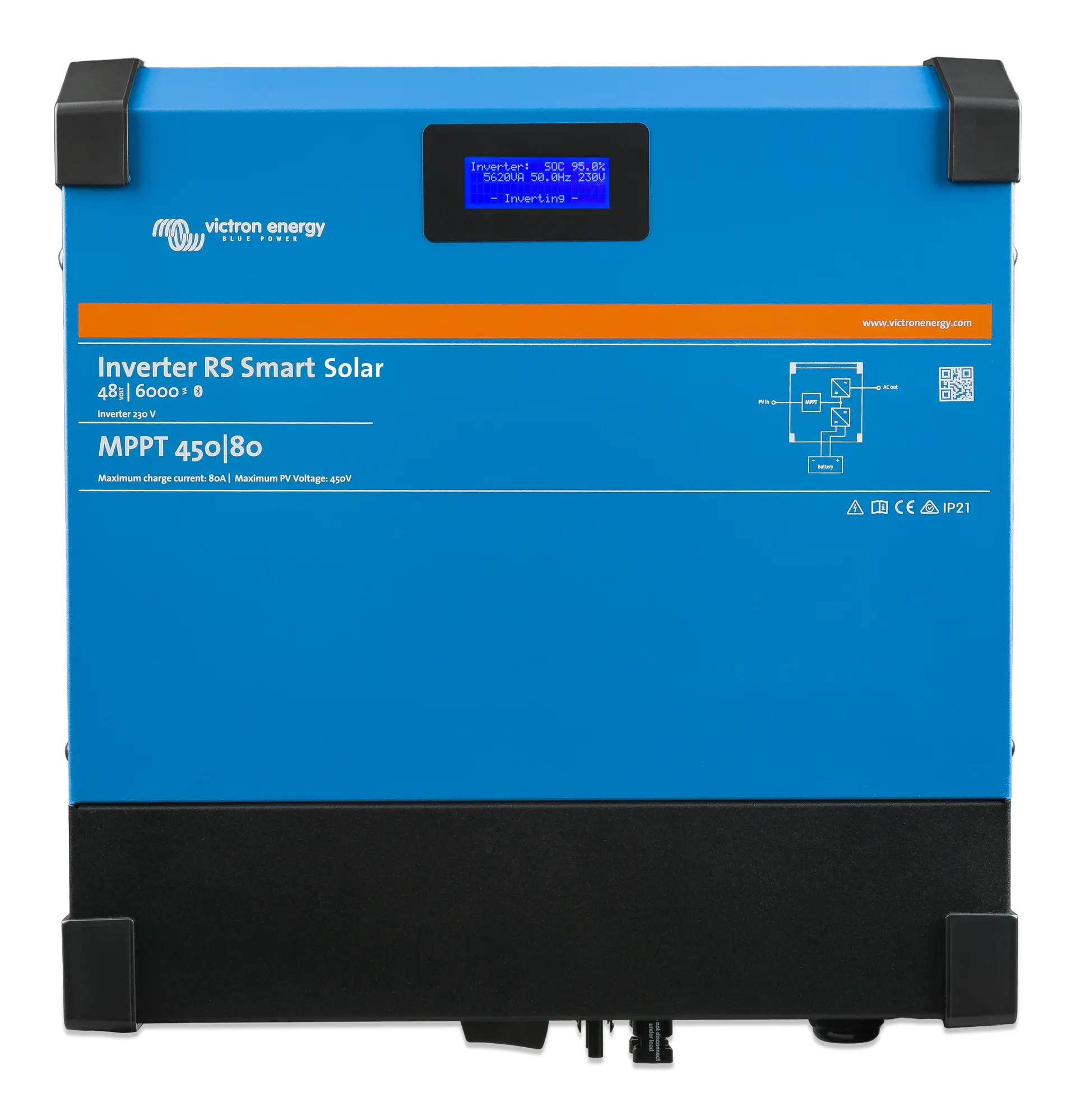

Victron Inverter RS 48/6000 230V Smart Solar

With 450 V / 4 kW PV input

Description
- The Inverter RS Smart Solar is the combination of a powerful 48 VDC, 6 kVA 230 VAC inverter and a high voltage, 80-450 VDC, 4 kW MPPT solar charger. Thanks to its modern design and high-frequency technology, the inverter only weighs 11 kg and has an excellent efficiency, low standby power, and very quiet operation.
- The inverter is equipped with a display to read out battery, inverter, and solar charger details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port for connection to a GX device for system monitoring and a VE.Direct port for connection to a GlobalLink 520.
- The batteries are charged by solar energy using the built-in MPPT solar controller. It can also be charged by a PV grid inverter connected to the AC out.
- This inverter can be used in Off-Grid applications where AC power is required and the inverter cannot be used in parallel or three-phase configurations.

Specifications
- DC Input voltage range: 38-62 V (6)
- Output voltage: 230 VAC 2 %
- Frequency: 50 Hz 0.1 % (1)
- Maximum continuous inverter current: 25 AC
- Continuous output power at 25 C increases linearly from 4800 W at 46 VDC to 5300 W at 52 VDC
- Continuous output power at 40 C 4500 W
- Continuous output power at 65 C 3000 W
- Peak power: 9 kW for 3 seconds, 7 kW for 4 minutes
- Short-circuit output current: 45 A
- Maximum efficiency: 96.5 % at 1 kW load 94 % at 5 kW load
- Zero load power: 20 W
- Low battery shutdown: 37.2 V (adjustable)
- Low battery restart: 43.6 V (adjustable)

What's in the box
1x Victron Inverter RS 48/6000 230V Smart Solar
