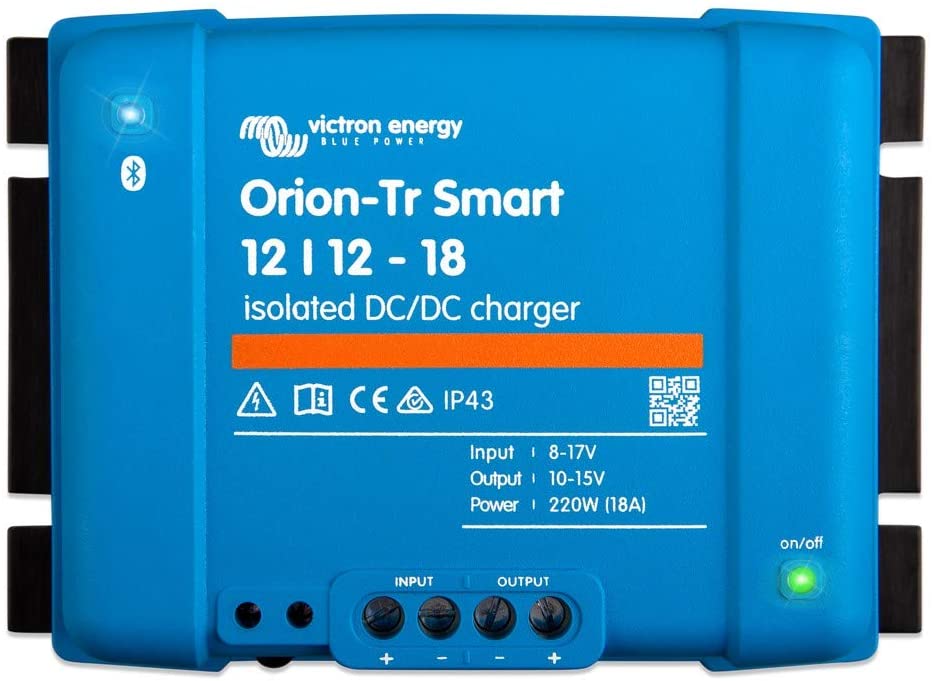

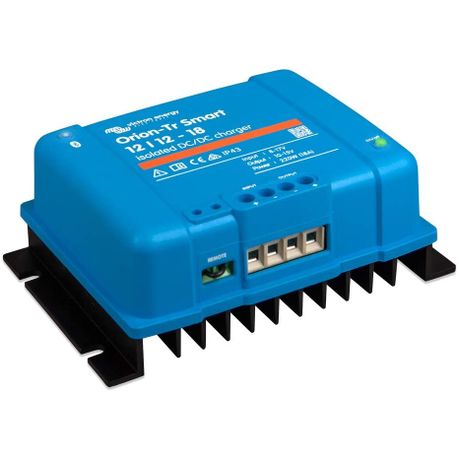

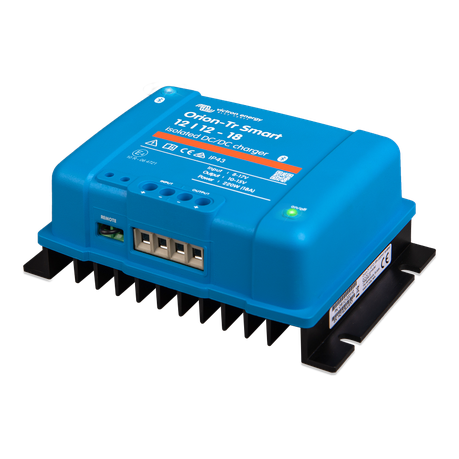

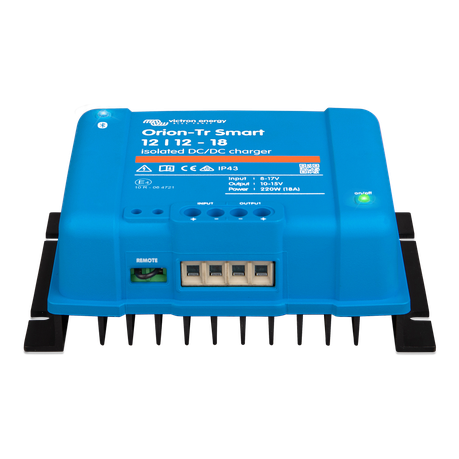

Victron Energy Orion-Tr Smart 12/12-18A Isolated DC-DC Charger

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

The Orion Tr-Smart charger is suitable for both lead acid and lithium batteries.

Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

Features:
- Bluetooth smart enabled
- Fully programmable
- Adaptive 3-stage charge algorithm; Bulk - Absorption - Float
- Suitable for vehicles with smart alternators
- Remote on-off
- Short circuit protected
- IP43 protection

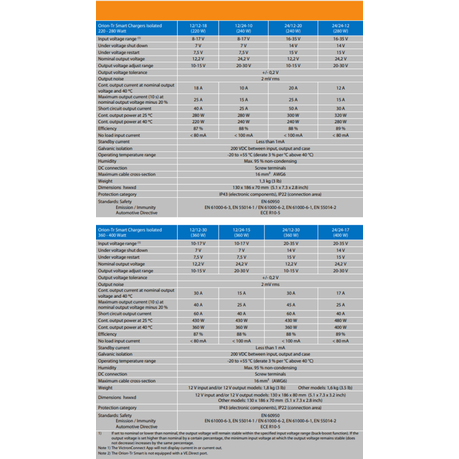

Specifications:
- Input voltage range 8-17V
- Under voltage shut down 7V
- Under voltage restart 7.5V
- Nominal output voltage 12.2V
- Output voltage adjust range 10-15V
