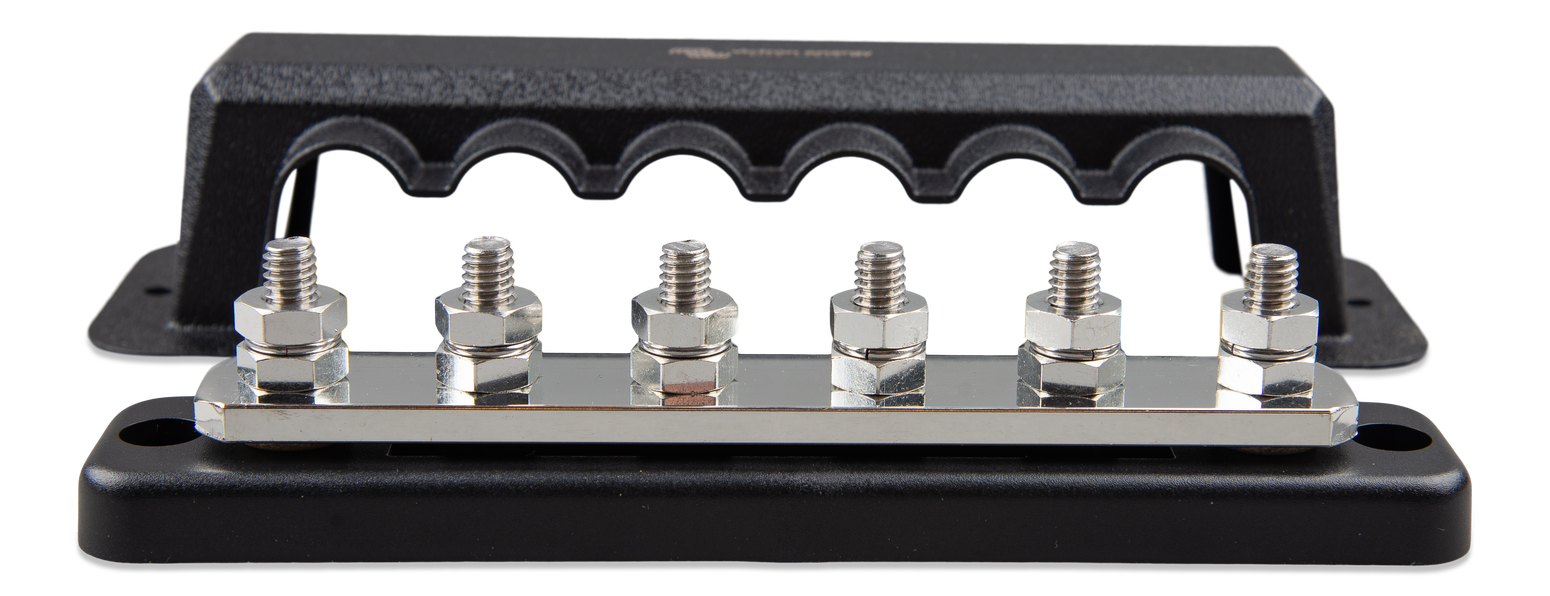

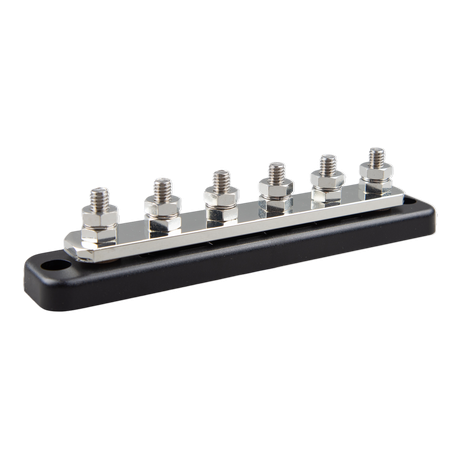

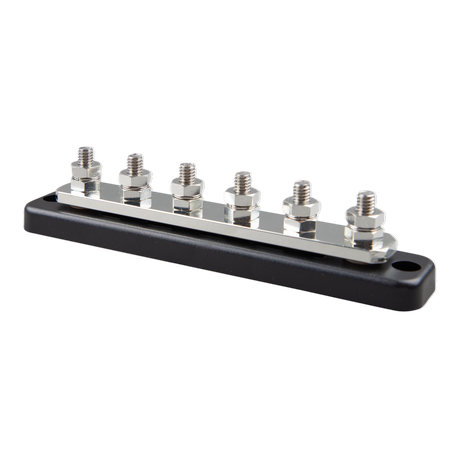

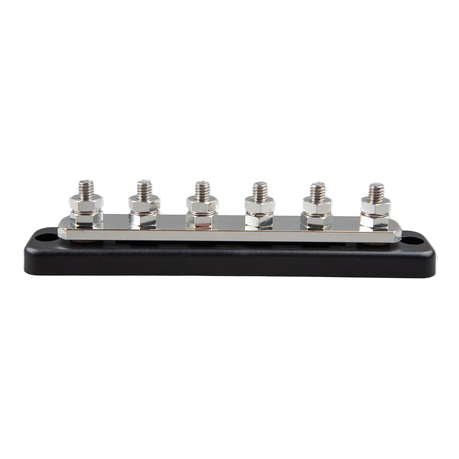

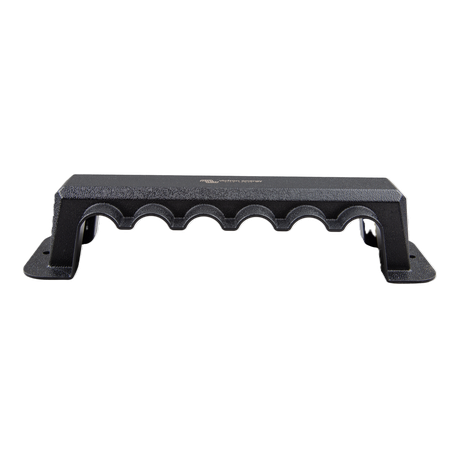

Victron Busbar 6P + Cover 250A

Busbars are used for high current distribution and at the same time they provide connections for batteries or DC equipment.

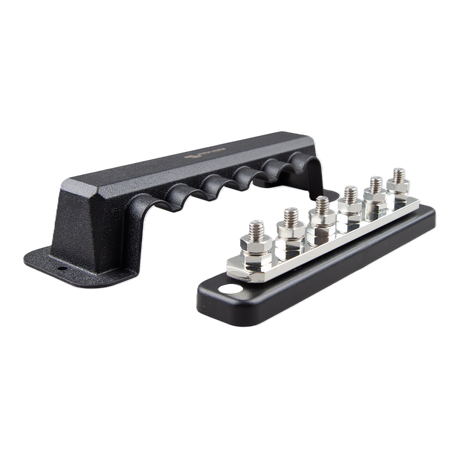

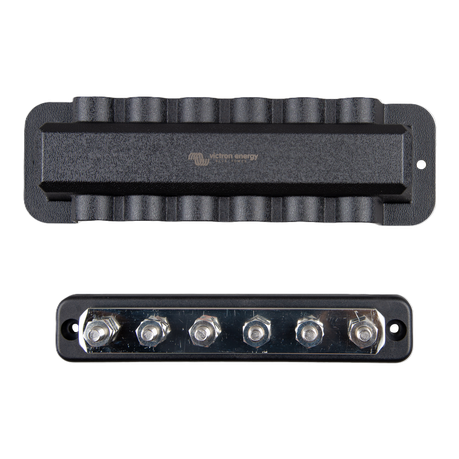

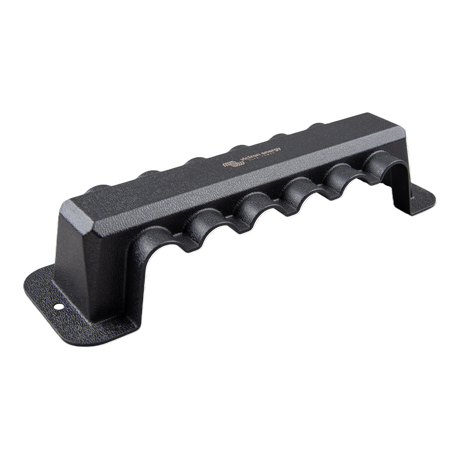

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

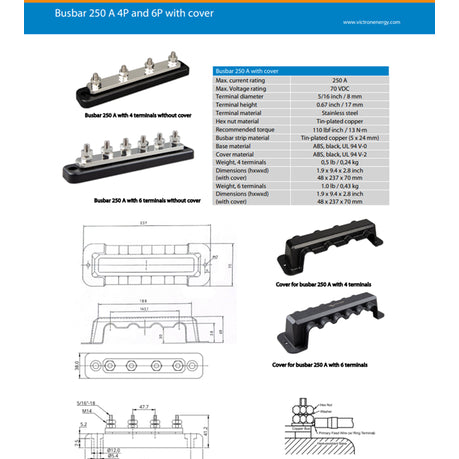

Max. current rating 250 A
Max. Voltage rating 70 VDC
Terminal material Stainless steel
Hex nut material Tin-plated copper
Recommended torque 110 lbf inch / 13 N m
Busbar strip material Tin-plated copper (5 x 24 mm)
Base material ABS, black, UL 94 V-0
Cover material ABS, black, UL 94 V-2
Weight, 4 terminals 0,24 kg
Dimensions (hxwxd) (with cover) 48 x 237 x 70 mm
Weight, 6 terminals 0,43 kg
Dimensions (hxwxd) (with cover) 48 x 237 x 70 mm

Available models:

150A / 70V - 4 high current connections
150A / 70V - 6 high current connections
250A / 70V - 4 high current connections
250A / 70V - 6 high current connections
