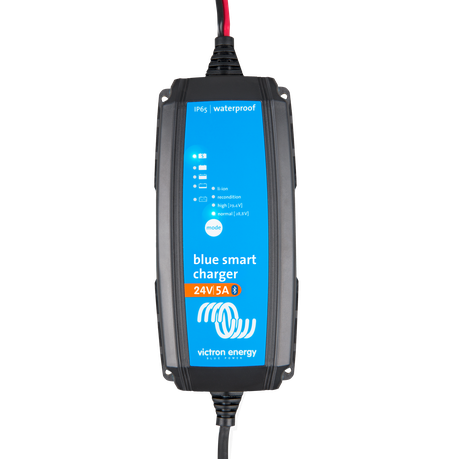

Victron Blue Smart IP65 Charger 24/5A

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

The battery is charged, smartly... to perfect condition:
The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and a longer life.

Recovery of deeply-discharged 'dead' batteries:
Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.

Connect the battery with ease:

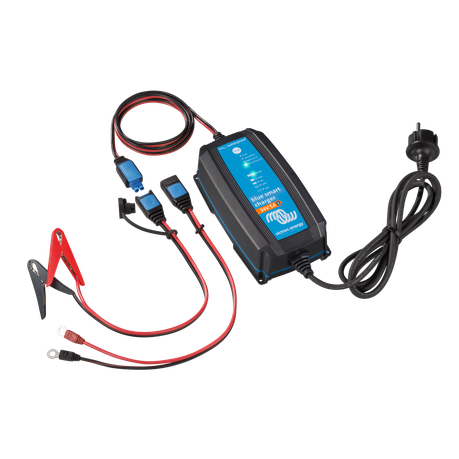

The charger comes with both crocodile clips and M8 eyelets - making it easy to connect to the battery. If you wish, you can leave it permanently connected.

Check the status of your battery remotely:
The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.

Features:
-Water, dust and chemical resistant
-Seven step smart charge algorithm
-Recovery of fully discharged 'dead' batteries
-Automatic power supply function
-Severe cold performance: down to -30 C
-Several other battery life enhancing features
-Low power mode to charge smaller batteries
-Li-ion battery mode
-Setup and configure, readout of voltage and current by Bluetooth Smart

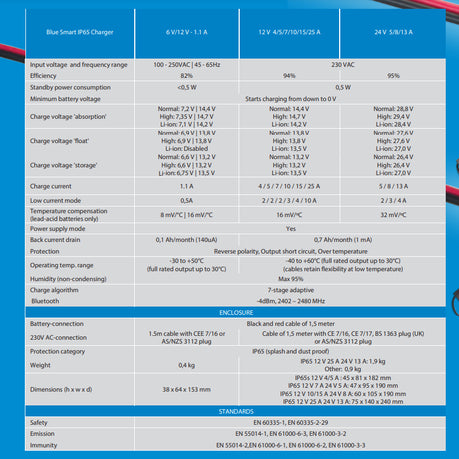

Specifications:
Input voltage and frequency range: 230 VAC
Efficiency: 95%
Standby power consumption: 0,5 W
Minimum battery voltage: Starts charging from down to 0 V
Charge voltage 'absorption':
-Normal: 28,8 V
-High: 29,4 V
-Li-ion: 28,4 V
Charge voltage 'float':
-Normal: 27,6 V
-High: 27,6 V
-Li-ion: 27,0 V
Charge voltage 'storage':
-Normal: 26,4 V
-High: 26,4 V
-Li-ion: 27,0 V
Charge current: 5A
Low current mode: 2A
Temperature compensation (lead-acid batteries only): 32 mV/ C
Power supply mode: Yes
Back current drain: 0,7 Ah/month (1 mA)
Protection: Reverse polarity, Output short circuit, Over temperature
Operating temp. range: -40 to +60 C (full rated output up to 30 C) (cables retain flexibility at low temperature)
Humidity (non-condensing): Max 95%
Charge algorithm: 7-stage adaptive
Bluetooth: -4dBm, 2402 - 2480 MHz

ENCLOSURE:
Battery-connection: Black and red cable of 1,5 meter
230V AC-connection: Cable of 1,5 meter with CE 7/16, CE 7/17, BS 1363 plug (UK) or AS/NZS 3112 plug
Protection category: IP65 (splash and dust proof)
Weight: IP65 24V5A 0,9 kg
Dimensions (h x w x d): IP65 24 V 5 A: 47 x 95 x 190 mm
