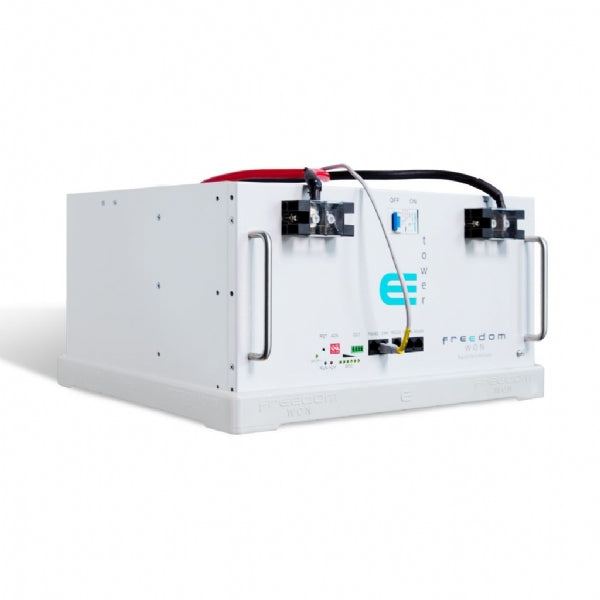

Freedom Won eTower 5000 Stackable Battery Module

The Freedom Won E-Tower e5000 LiFePO4 battery is the perfect high quality battery for all your residential solar solutions.

Technical Data:
Total Energy Capacity: 5kWh
Energy available at 80% DOD: 4kWh
Energy available at 90% DOD: 4.5kWh
Current Capacity: 100Ah
Nominal Voltage: 52V to suit 48V Inverters, Min 47V, Max 56V
Continuous Charge Rate: 0.7C (Max 0.8C for 5 minutes per 30 minute cycle)
Continuous Discharge Rate: 0.9C (4.7kW) (1C (5.2kW) = 100A for 5 minutes per 30 minute cycle)
Service Life: 4000 cycles or 10 Years @ 70% DOD (Depth of Discharge) and ambient temperature > -20deg C and < 45 deg C
Weight: 45kg
Dimensions: 247x460x463 mm including pedestal, 222x440x443 mm excluding pedestal
Enclosure: Steel, painted white, rated for indoor use

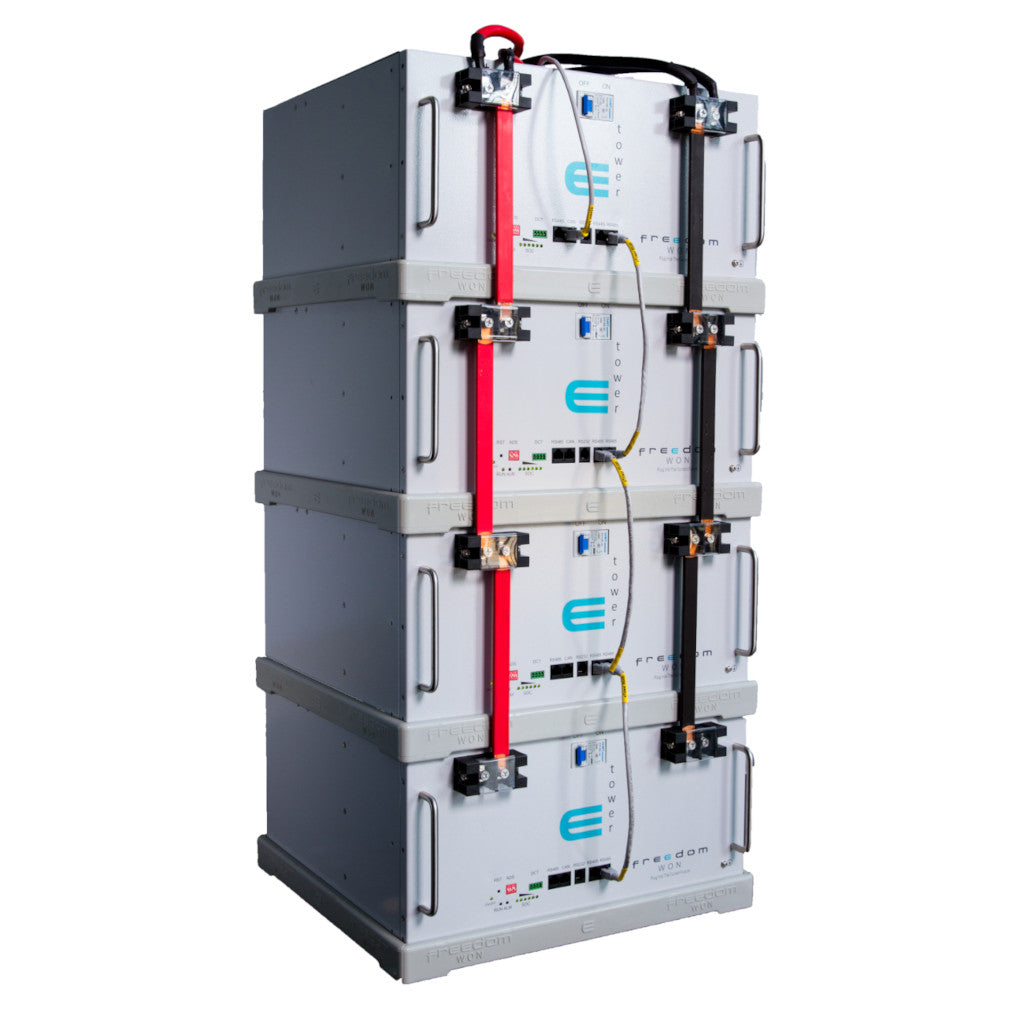

DC Connection: 2 x M6 bolts each for positive and for negative terminals for DC leads to inverter and busbars for connection of parallel e5000’s in tower or rack configuration.

What's in the box
1x Freedom Won eTower 5000 Stackable Battery Module
