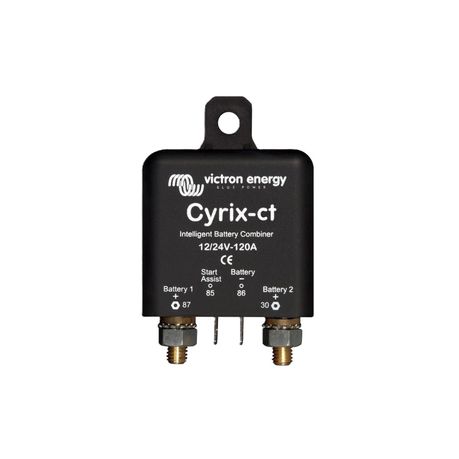

Victron Cyrix-ct 12/24V-120A intelligent Li-ion battery combiner

Some battery combiners (also called voltage controlled relay, or split charge relay) will disconnect a battery in case of a
short but high amperage load. A battery combiner also may fail to connect a large but discharged battery bank because
the DC voltage immediately drops below the disengage value once the batteries are connected.
The software of the Cyrix-ct 12/24 does more than simply connect and disconnect based on battery voltage and with a
fixed time delay. The Cyrix-ct 12/24 looks at the general trend (voltage increasing or decreasing) and reverses a previous
action only if the trend has reversed during a certain period of time. The time delay depends on the voltage deviation
from the trend.

Voltage: 12/24V
Current: 120A
