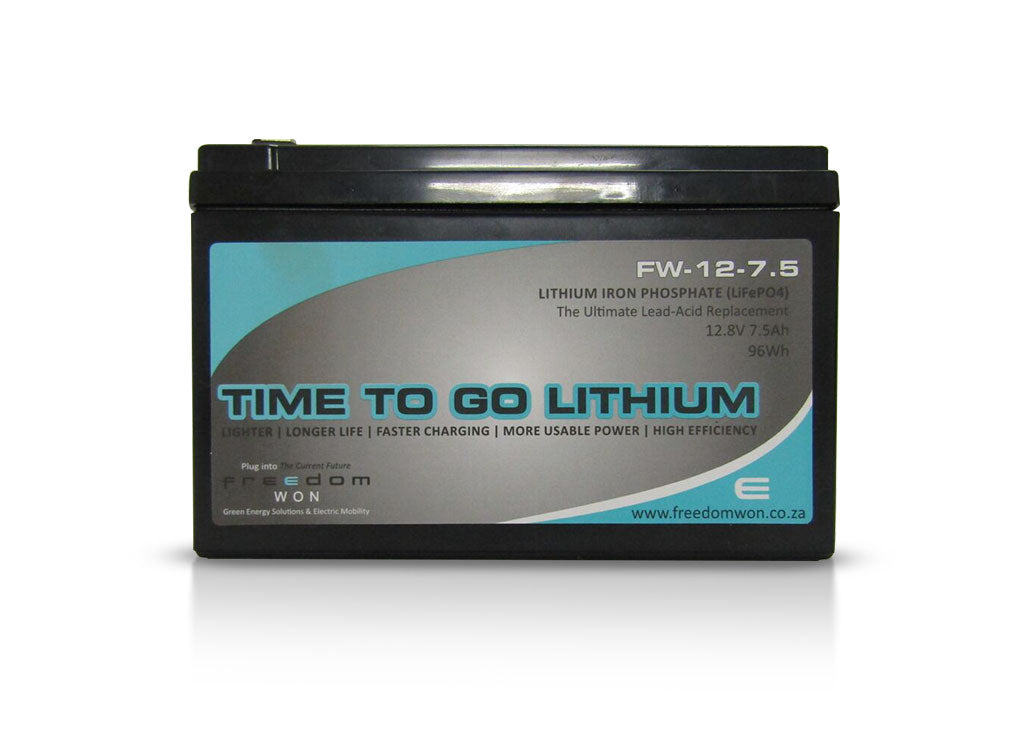

Freedom Won 7.5ah 12v Lithium Ion battery

The obvious lead replacement solution – a new world of longevity and performance awaits you in the possibilities offered by Freedom Won’s range of 12V lithium batteries. Sizes ranging from 7.5Ah to 200Ah for wide ranging applications from alarm and gate motors to high end boat and camper energy storage. Also suitable for small solar integrated and backup systems. Not suitable for starting engines or other extreme high current draw applications.

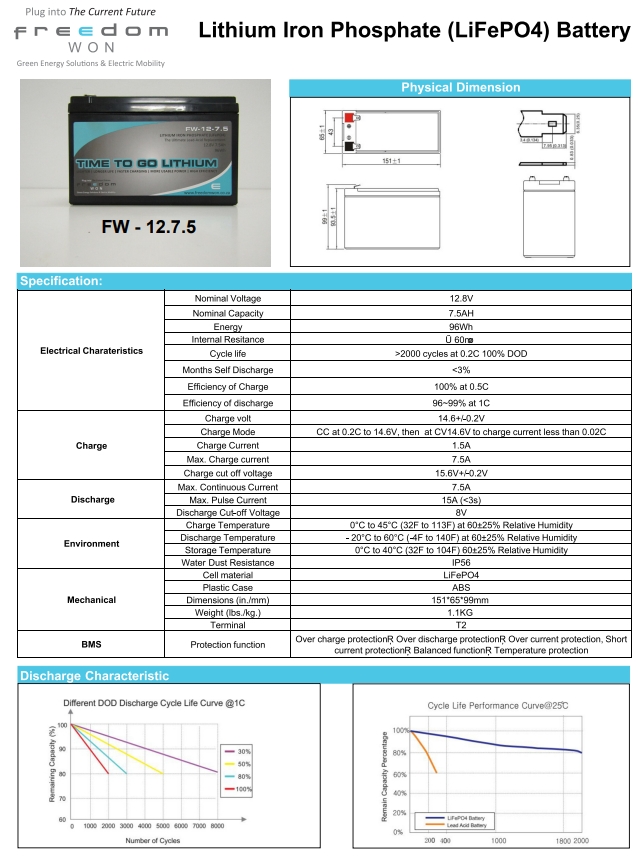

Electrical Characteristics

Nominal Voltage: 12.8V
Nominal Capacity: 7.5AH
Energy: 96Wh
Internal Resistance: ?60m?
Cycle Life: >2000 cycles at 0.2C 100% DOD
Months Self Discharge: <3%
Efficiency of Charge: 100% at 0.5C
Efficiency of Discharge:96~99% at 1C
Charge Volt: 14V-14.6V
CC at 0.2C to 14.6V, then at CV14.6V to charge current less than 0.02C
Charge Current: 1.5A
Max. Charge Current: 7.5A
Charge Cut-off Voltage: 15.6V+/-0.2V
Max. Continuous Current :7.5A
Max. Pulse Current: 15A (<3s)
Discharge Cut-off Voltage: 8V
Water Dust Resistance
IP56
LiFePO4
Plastic Case
Terminal: T2
BMS:Protection Function
Over charge protection, Over discharge protection, Over current protection, Short current protection, Balanced function, Temperature protection

 What's in the box
